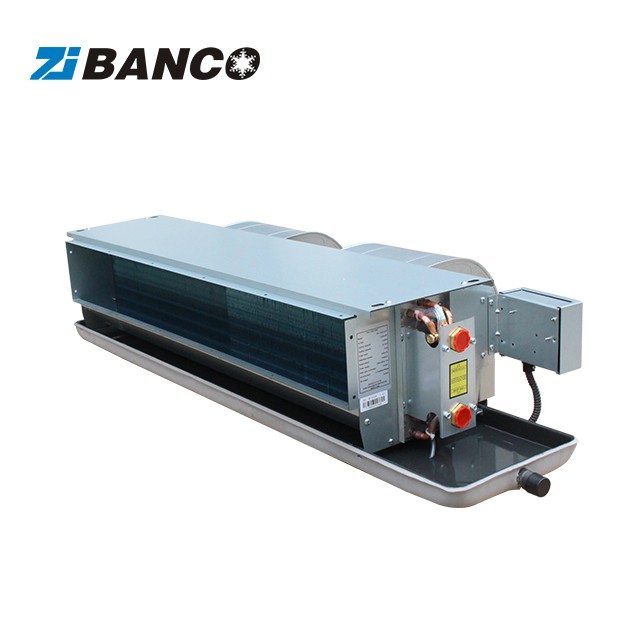

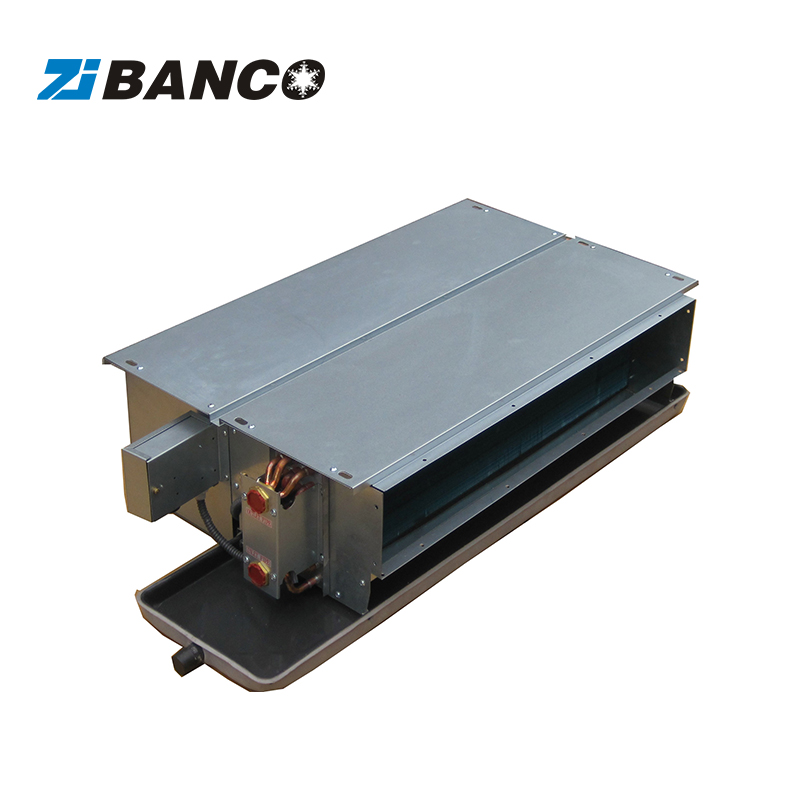

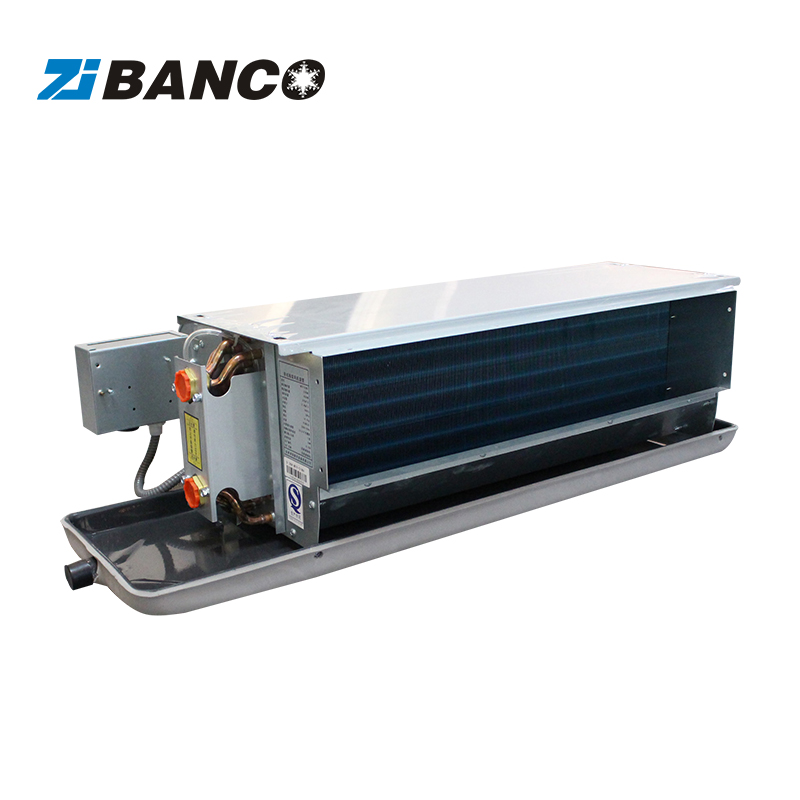

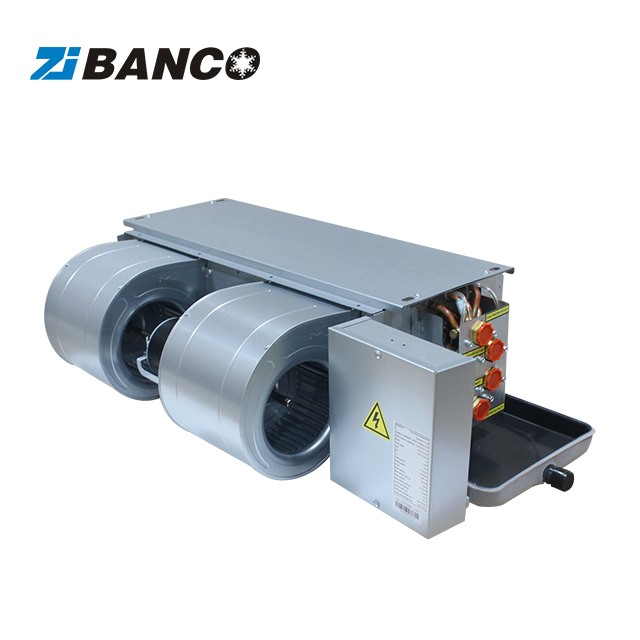

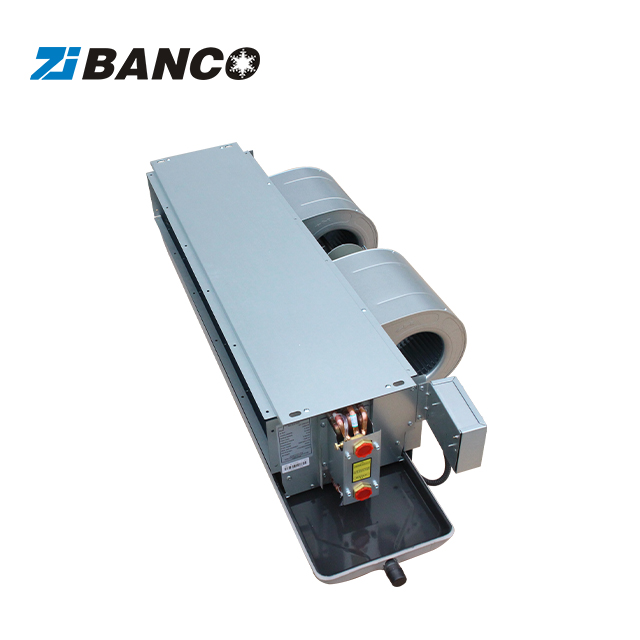

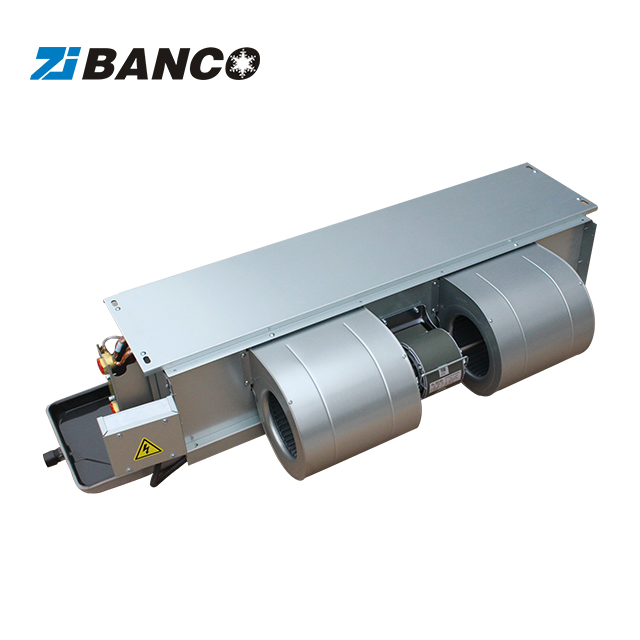

Horizontal Concealed Fan Coil Unit

Horizontal Concealed Fan Coil Unit

Features
1. Fan
High quality fan, every fan which installed on the fan coil unit is passed precision adjustment of dynamic balance. Fan runs with low noise and stable working.

2. Drain pan
Using high grade tensile plate, with plastic sprayed on the surface, therefore it is smooth and shiny rusty-proof as well Introducing one-off pressed forming technique, there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage.

3. Heat exchanger
High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth air flow and high efficient heat exchange.

4. Air return box
Air return box is optional, which can ease installation, reducing construction cost.

5. Large model range
Air flow range is 340m³/h~2380m³/h, static pressure 12/30/50 Pa is optional.

6. High efficiency
High efficient heat exchanger and large air flow centrifugal fan, excellent heat transfer effect.

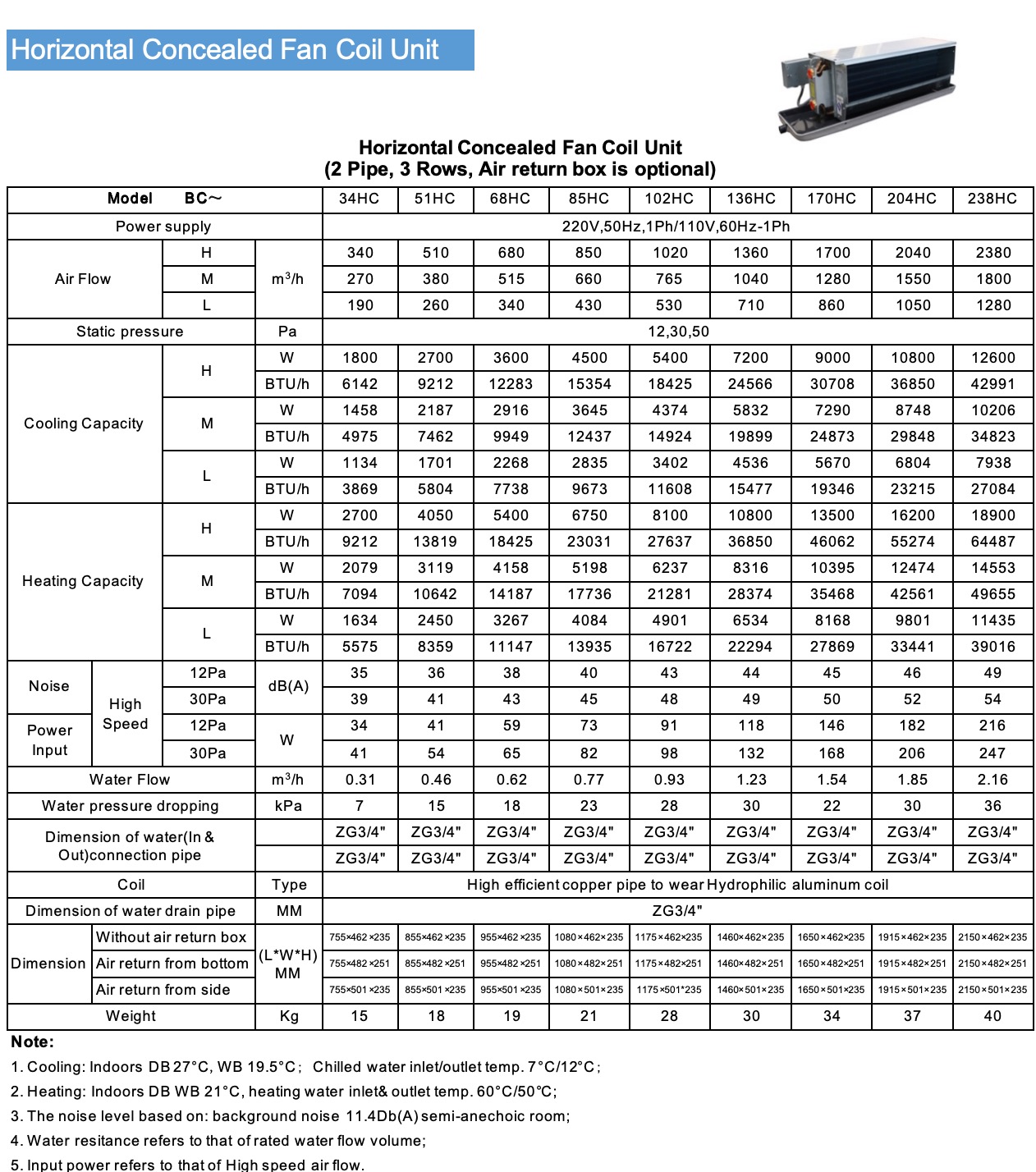

More information, please kindly download the specification.
